Multifunctional flat plate heater ACEPOM-ZNP-2.0, Special for small bearing Average heating

Multifunctional flat plate heater ACEPOM-ZNP-2.0, Special for small bearing Average heating

share
  • Detail
  • Parameters

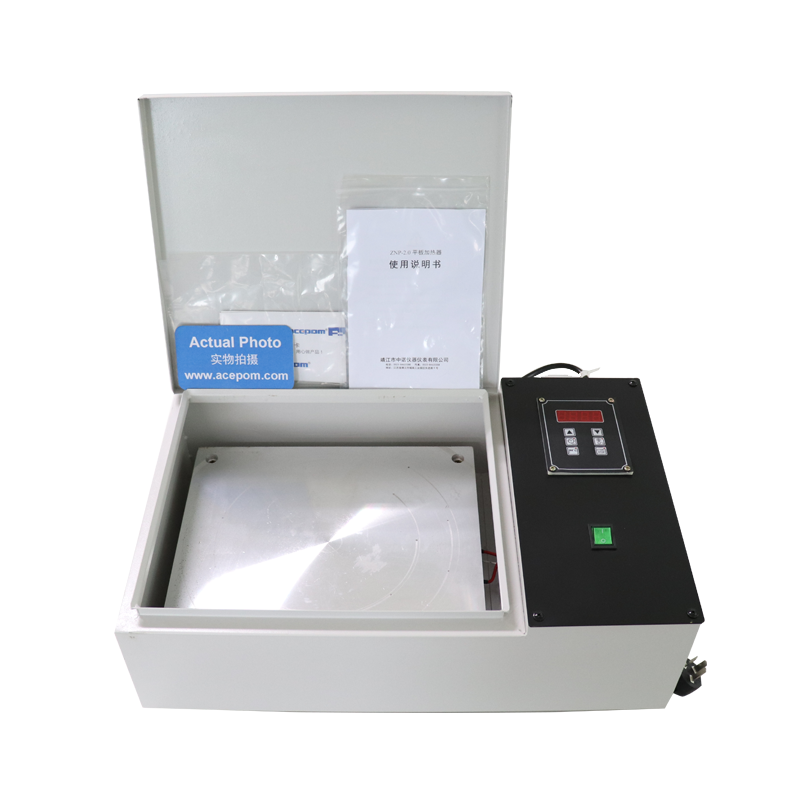

ACEPOM ZNP series


It is specially used for heating small bearing or other small parts.

Microcomputer digital display, heat preservation

A flat heating surface ensures uniform heating of the bearing

The protective cover plate is conducive to thermal insulation and avoid external pollution

No demagnetization is required to reduce the risk of metal debris contamination

Two heating modes: time control and temperature control

Environmental protection and no oil fume pollution


ModelACEPOM-ZNP-2.0ACEPOM-ZNPS-2.0ACEPOM-ZNPT-2.0
Power2.0KVA2.0KVA2.0KVA
Voltage220V220V220V
Electric current9A9A9A
Frequency50/60Hz50/60Hz50/60Hz
ID>5mm>5mm>5mm
OD200mm200mm200mm
WIDTH60mm60mm60mm
WEIGHT20kg20kg20kg
Heating plate size310×290mm310×290mm310×290mm
Overall dimension530×340×190mm530×340×190mm530×340×190mm
Machine weight10kg10kg12kg
Maximum display temperatureMax.299℃Max.299℃Max.450℃
temperature control0-299℃0-299℃0-450℃
manual controlYesYesYes
Automatic insulationYesYesYes
Heating plate temperature displayYesYesYes
Workpiece temperature display-Yes-
Heating plate materialAluminiumAluminiumCopper


ACEPOM ZNP series induction heater datasheet download.

Origin
China
Brand
ACEPOM
Model
ACEPOM-ZNP-2.0
