BearingChecker is used to assess the condition of rolling element bearings in industrial equipment like gearboxes, motors, fans, and pumps. Through regular measurements at predefined positions, always under similar operating conditions, data can be collected and compiled into trends showing operating condition over time. This allows you to make confident maintenance decisions, such as initiating more frequent condition checks or planning repair work for a planned stop.

BearingChecker makes a proactive approach to maintenance economically feasible for everyone. It is an ideal instrument for beginners in condition monitoring, or as a supplement to more advanced instruments for evaluated shock pulse measurement. Without specialized training, potential problem sources can be detected and monitored well before damage is detectable by heat or vibration.

Technical overview

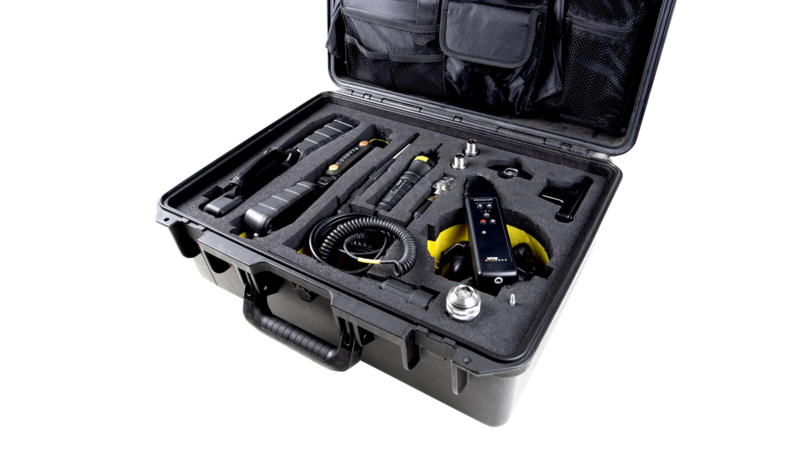

BearingChecker is a portable instrument for fast and easy measurement of bearing condition in preventive maintenance. The instrument is push-button controlled and basic measurement data are entered manually.

BearingChecker measures shock pulses, either with a built-in probe (BC200) or with an external sensor. The instrument can also be used as an electronic stethoscope for detecting machine sound irregularities. Measuring results are indicated by green-yellow-red symbols along with a detailed evaluation of measurement values. Measurement results can also be transferred to a file for further processing, e.g. in Microsoft Excel.

Instrument

Size: BC200: 207x74x41 mm (8.1x2.9x1.6 in), BC250: 184x74x41 mm (7.2x2.9x1.6 in)

Weight: BC200: 335 g (11.8 ounces), BC250: 300 g (10.6 ounces)

Display: 2.4" Color TFT LCD Display

Protection class: IP65
