FUNCTION AND APPLICATION

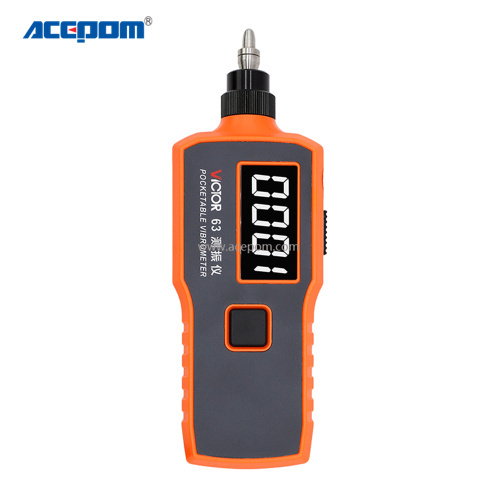

Vibration meter is a kind of integrated, pocketsize instrument for vibration measurement of rotating machinery. With the capability to measure the displacement, velocity and acceleration of the objects easily, the meter can be applied in industry departments such as electric power, petroleum, chemical engineering and metallurgy to meet different demands.

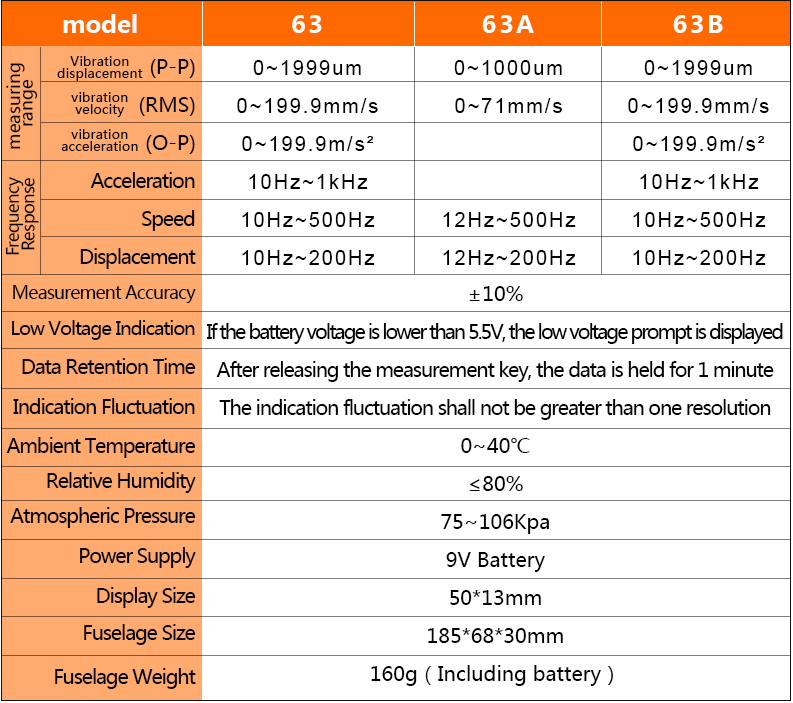

SPECIFICATION

Vibration measurement range

Displacement: 0~1999um (peak to peak)

Velocity: 0~199.9mm/s (rms)

Acceleration: 0~199.9m/s2

Frequency range

Displacement: 10~200Hz

Velocity: 10~500Hz

Acceleration: 10~1000Hz

Linearity and Accuracy

Displacement: 0~20um: ±10% >20um: ±5%

Velocity: 0~2.0mm/s: ±10% >2.0mm/s: ±5%

Acceleration: 0~2.0 m/s2: ±10% >2.0 m/s2: ±5%

Display: 3 1/2 digit LCD

Low voltage indication: If battery voltage <5.5V, a battery mark appears on the LCD, then replace the battery with new one.

Hold function: the displayed vibration value is hold and kept for one minute after the MEAS button is released

Power: 6F22 batter (9V)

Battery life: approx. 25h under continuous use

Ambient conditions operation

Temperature: 0~40℃

Humidity: ≤80%

Atmosphere pressure: 75~106kpa

Dimension: 185(H)× 68(W) ×30(D) mm

Weight: 230g (including battery)
