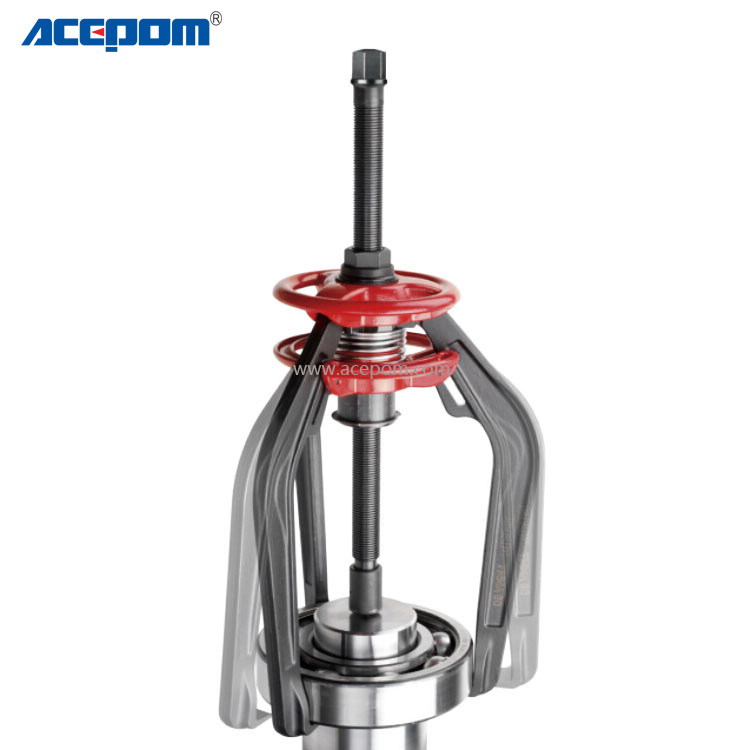

Hydraulic jaw puller series TMMA75H/TMMA100H
Ready-to-use, integrated hydraulic cylinder, pump and puller - thus it is assembly-free and it is not necessary to purchase separate parts
Safety valve prevents spindles and pullers from being overloaded if excessive force is applied
The spring-loaded centre point on the hydraulic spindle allows easy centring of the puller on the shaft without damaging the shaft
The TMMA 100H has a maximum withdrawal force of 100 kN (11.2 ton US) and a long stroke of 80 mm (3.1 in), which facilitates most dismounting jobs in just one operation
For dismounting jobs requiring less force, SKF offers a 75 kN (8.4 ton US) version, the TMMA 75H with a maximum stroke of 75 mm (3 in)
Supplied with extension pieces and one nosepiece
| Technical data | ||
| TMMA 75H | TMMA 100H | |
| General | ||
| Width of grip external, minimum | 52 mm (2 in.) | 75 mm (3 in.) |
| Width of grip external, maximum | 200 (7.8 in.) | 250 (9.8 in.) |
| Effective arm length | 200 mm (7.8 in.) | 250 mm (9.8 in.) |
| Maximum withdrawal force | 75 kN (8.4 ton US) | 100 kN (11.2 ton US) |
| Total weight | 7.0 kg (15.4 lb) | 13.2 kg (29 lb) |
| Claw Dimensions | ||
| Claw height | 9,8 mm (0.39 in.) | 13,8 mm (0.54 in.) |
| Claw length | 18 mm (0.7 in.) | 24 mm (0.9 in.) |
| Claw width | 28 mm (1.1 in.) | 40 mm (1.6 in.) |
| Force generator | ||
| Hydraulic spindle | TMHS 75 | TMHS 100 |
| Piston stroke | 75 mm (3.0 in.) | 80 mm (3.1 in.) |
| Body thread | UN 1,25"x12 | N 1,5"x16 |
| Diameter nose piece | 35 mm (1.4 in.) | 30 mm (1.2 in.) |
| Spare parts | ||
| Arm | TMMA 75H-1 | TMMA 100H-1 |
| Opening mechanism | TMMA 75H/80-3 | TMMA 100H/12-3 |
| Hydraulics extension piece set | TMHS 5T | TMHS 8T |
| Accessories | ||
| Hydraulic spindle | TMHS 75(included) | TMHS 100(included) |
| Puller protection blanket | TMMX 280 | TMMX 350 |
| Tri section pulling plates | TMMS 50 TMMS 100 | TMMS 50 TMMS 100 TMMS 160 |
