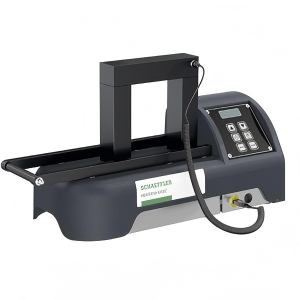

Induction bearing heater HEATER50 Heater50-BASIC-230V
Induction bearing heater HEATER50 Heater50-BASIC-230V
- Detail
- Parameters
Induction Heater Heater50 Medium-sized heater for bearings
Portable Induction Heater
Single‑point temperature measurement
Clear digital display
Supplied with 3 heating yokes
| U | 230 V | Operating voltage |
| f | 50 – 60 Hz | Power frequency |
| P | 3 kVA | Power consumption |
| I | 13 A | Current rating |
| ϑh max | 240 °C | Max. heating temperature |
| 0 – 99 min | Heating time | |
| Digital | Display | |
| 1 | Magnetic probe, quantity | |
| ≈m | 24.2 kg | weigh |
| Functions | ||
| + | Temperature hold | |
| + | Automatic demagnetization, <2A/cm | |
| — | Swivel arm | |
| — | Log function | |
| — | Delta-T control | |
| + | Temperature control | |
| + | Time control | |
| — | Temperature and time control | |
| — | Temperature and speed control | |
| + | Overheating protection | |
| + | Automatic power reduction | |
| + | Device supports horizontal / lying heating of the workpiece | |
| + | Device supports vertical / hanging heating of the workpiece | |
| size | ||
| 600 mm | Length HEATER | |
| 226 mm | Width HEATER | |
| 274 mm | Height HEATER | |
| B | 120 mm | Space between poles |
| C | 130 mm | Pole length |
| D | 40x50 | Pole cross section (mm²) |
| Workpiece to be heated | ||
| 10 mm | Min. inner diameter workpiece, vertical heating: with included yoke | |
| 65 mm | Min. inner diameter workpiece, horizontal heating | |
| ØAmax | 400 mm | Max. outer diameter workpiece |
| 115 mm | Max. workpiece width, vertical heating | |
| 125 mm | Max. workpiece width, horizontal heating | |
| mb max | 50 kg | Max. workpiece weight |
Origin
German
Brand
FAG
Model
HEATER 50
Brief Introduction
induction heater
