HEATER50-SMART-230V

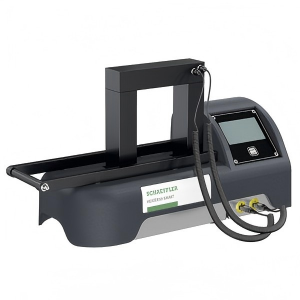

Heater50‑SMART Portable Induction Heater

Dual‑temperature measurement with ΔT function

Intuitive touch‑screen with clear graphical display

Data logging function, export data via USB flash drive

Generate and output certified work‑reports

Stress‑free, safe induction heating

Supplied with 3 heating yokes


Enhanced Control & Stress‑Free Mounting

Thanks to Delta‑T (ΔT) monitoring, two temperature probes measure both the inner and outer temperatures of the workpiece. The temperature difference between the two points will never exceed your preset maximum limit. This delivers uniform, well‑controlled heating and effectively prevents thermal‑induced material stress.


Technical data
U
230 V
Operating voltage
f
50 – 60 Hz
Power frequency
P
3 kVA
Power consumption
I
13 A
Current rating
ϑh max
240 °C
Max. heating temperature

0 – 99 min
Heating time

Touch
Display

2
Magnetic probe, quantity
≈m
24.6 kg
weigh



Temperature hold
Dimensions
+Automatic demagnetization, <2A/cm
—Swivel arm
+Log function
+Delta-T control
+Temperature control
+Time control
+Temperature and time control
+Temperature and speed control
+Overheating protection
only in temp. and speed modeAutomatic power reduction
+Device supports horizontal / lying heating of the workpiece
+Device supports vertical / hanging heating of the workpiece
Dimensions

600 mmLength HEATER
226 mmWidth HEATER
274 mmHeight HEATER
B120 mmSpace between poles
C130 mmPole length
D40x50Pole cross section (mm²)
Workpiece to be heated

10 mmMin. inner diameter workpiece, vertical heating: with included yoke
65 mmMin. inner diameter workpiece, horizontal heating
ØAmax400 mmMax. outer diameter workpiece

115 mmMax. workpiece width, vertical heating
125 mmMax. workpiece width, horizontal heating
mb max50 kgMax. workpiece weight



Origin
German
Brand
FAG
Model
HEATER50-SMART
Brief Introduction
induction heater
