Data collection and analysis the way you want it

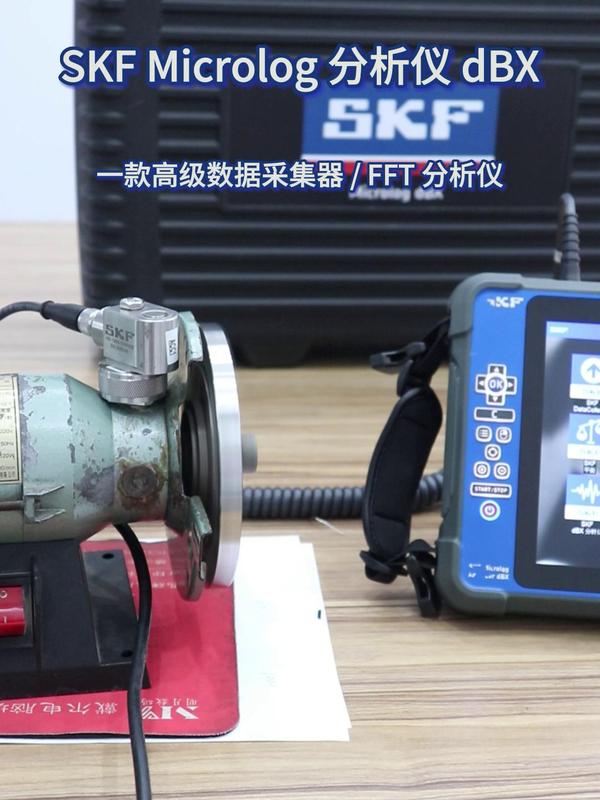

The SKF Microlog Analyzer dBX has been developed with users in mind. This is why it has a large screen, developed for efficient analysis in the field. This is why it has SKF’s most powerful processing power for fast measurements and the ability to perform analyses on the device. This is why it is more user-friendly than ever.

Our largest screen
The SKF Microlog Analyzer dBX has a 10.1-inch high-resolution touch screen. It can display up to 6 measurement windows at once and has been designed for easy viewing in any light condition.

Fast measurements with MPA-in-a-flash
Multi-Point Acquisition (MPA) is SKF’s fastest vibration analysis method. It is typically three times faster than the previous Microlog series, saving you time spent on taking measurements. For even faster data collection, the SKF Microlog Analyzer dBX can take simultaneous tri-axial measurements.

Easy to use
New, improved user interface makes the SKF Microlog Analyzer dBX easier to learn and use than the previous model. Getting you started quickly, with minimum training.

Handle with or without gloves
Physical backlit keypad and touch screen control.

Advanced on-device data analysis
Possibility to perform data analyses on the device, without the need to use an external computer. Equipped with SKF gE
enveloping to determine the condition of rolling element bearings.

Large storage memory
256 GB of memory. Enough storage to meet your individual analysis needs.

Designed for field work
Rugged design for reliability in industrial environments.
Dust and water-ingress protection to IP65. Onboard camera and RFID reader to assist in identifying rotating machinery location.

Hours of power
Interchangeable and rechargeable battery
supports up to 8 hours of continuous data collection.

DATA

Standard version
CMVA 90-M-CK-SL
• Data Collector
• dBX Analyzer
• Balancing
• gE Enveloping
• Bump Test
• ODS Analysis

CMVA 90-M-CK-SL kit includes: • CMVA 90-M Microlog dBX, programmed with SKF DataCollector, SKF dBX Analyzer and SKF Balancing applications, 256 GB on-board storage

• CMAC 9001 Universal power supply with 4 power cords

• CMAC 9002 Power adapter cable

• CMAC 9005

Two(2) batteries • CMAC 9010 USB A-Type to A-Type communications cable

• CMAC 9015 SKF branded carry case

• CMAC 9016 Two (2) hand-straps

• CMAC 9017 Neck-strap

• CMSS 2200 General purpose accelerometer, cable and magnet mount

• Certificate of calibration and conformance CMSS 1500-K sensor kit includes: • General purpose, 100 mV/g accelerometer

• Accelerometer coiled cable, BNC connector

• Magnet with fixing bolt

• Certificate of calibration
