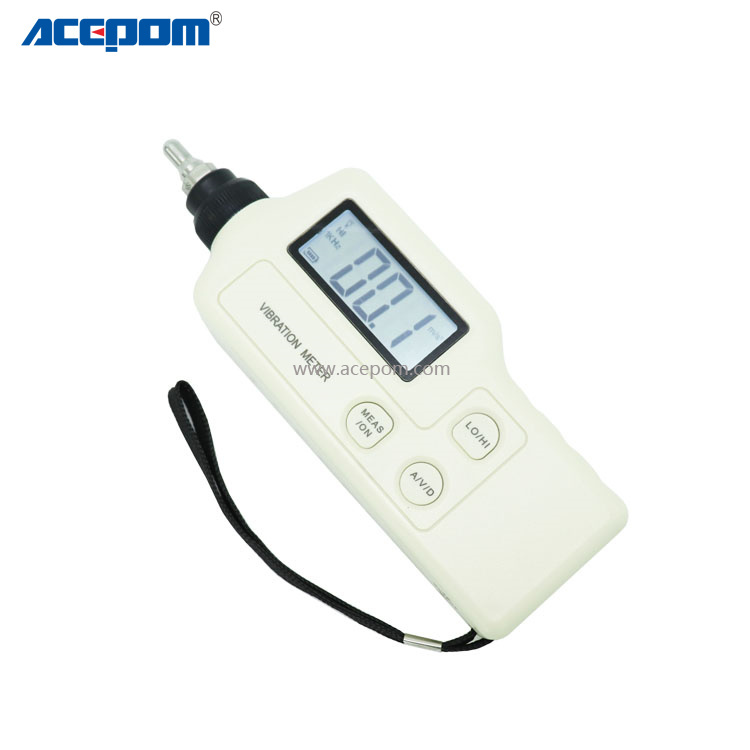

Portable Vibration Meter AS63A

Product characteristics

Portable vibrometer AS63A, also known as seismometer vibration analyzer or seismometer pen, is designed with piezoelectric effect of quartz crystal and artificial polarized ceramic (PZT). It is widely used in the fields of machinery manufacturing, electric power, metallurgical vehicles and so on. By using the data measured by the instrument, comparing with the international/national metrological verification regulations of the working vibrometer, or using the standards of enterprises and machines, the current state of the equipment (fans, pumps, compressors, motors, etc.) can be determined (good, attentive or dangerous). Risk, etc.)

Portable Vibration Meter AS63A Technical Parameters

Measurement Method Piezoelectric Ceramic Accelerometer

Acceleration measurement ranges from 0.1 to 199.9m/s 2

Velocity measurement ranges from 0.1 to 199.9m/s

The range of displacement measurement is 0.001-1.999mm.

Acceleration measurement frequency 10HZ~1KHZ(LO)

1KHZ~15KHZ(HI)

Speed measurement frequency 10HZ~1KHZ

Displacement measurement frequency 10HZ~1KHZ

Measurement error (+5%H +2 digits)

AC output AC output Peak (display full range)

* Large Value Lock-in

Temperature measurement--

Unit Conversion at -

Packing specification

Power 9VDC Battery

Net weight of product 147g

Product size 184*67*30mm

Packaging Method Color Box Packaging
