The SKF TIH L77 is a very large induction heater for hot bearing mounting. The TIH L77 is characterised by its extended operating area that allows very large bearings to be heated. The sliding yoke supports an ergonomic workflow and the heater can easily be transported by forklift. The TIH L77 is designed for very wide bearings weighing up to 1200 kg.
Extended operating area for very wide bearings
Standard sliding yoke for ergonomic operation
Easy and safe to use with automatic temperature control or time controlled heating
Automatic demagnetization reduces risk of bearing contamination
Automatic temperature hold function to keep the bearing hot after completion of the heating cycle

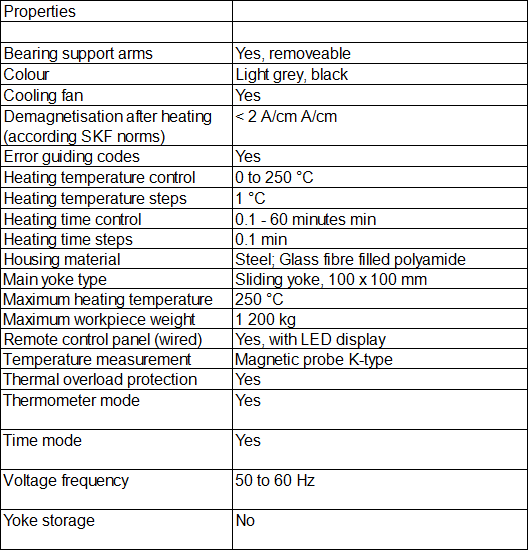

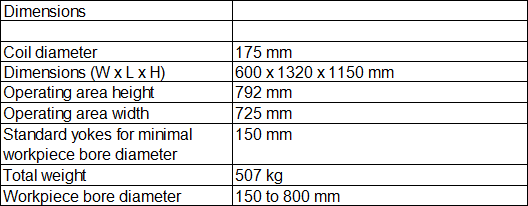

| Technical data | |
| Designation | TIH L77 |
| Max. bearing weight | 1 200 kg (2 600 lb) |
| Bore diameter range | 150–800 mm (5.9–31.5 in.) |
| Operating area (w × h) | 725 × 792 mm (28.5 × 31.2 in.) |
| Coil diameter | 175 mm (6.9 in.) |
| Standard yokes (included) to suit bearing minimum bore diameter | 150 mm (5.9 in.) |
| Optional yokes to suit bearing minimum bore diameter | – |
| Max. power consumption | TIH L77/MV: 20–23 kVA TIH L77/LV: 20–24 kVA |
| Voltage * 200–240 V/50–60 Hz 400–460 V/50–60 Hz | TIH L77/LV TIH L77/MV |
| Temperature control | 20 to 250 °C (68 to 482 °F) |
| Demagnetisation according to norms | <2 A/cm |
| Max. temperature ** | 250 °C (482 °F) |
| Dimensions (w × d × h) | 1 320 × 600 × 1 150 mm (52 × 23.6 × 45.3 in.) |
| Total weight (incl. yokes) | 415 kg (915 lb) |
Origin
Sweden
Brand
SKF
Model
TIH L77/LV
Brief Introduction
Quick heating induction heater for bearings
