The color screen storage vitiometer ACEPOM318 is designed with artificially polarized ceramic piezoelectric effect, which is suitable for measuring the conventional vibration of mechanical equipment, especially the vibration measurement in rotating and reciprocating machinery. It can measure the vibration displacement, speed and acceleration and display it on the screen at the same time, and can intelligently judge the equipment status according to the measurement results against the equipment status evaluation table. It is widely used in machinery manufacturing, power metallurgy, general aerospace and other fields.

Functional features:
1. Real-time display of vibration acceleration, speed and displacement;
1. LCD color display screen;
2. The screen can be turned 360° according to the use scenario;
3. Piezoelectric ceramic acceleration sensor;
4. High and low frequency switchable measurement: high frequency (1KHz~10KHz) low frequency (20Hz~1KHz);
5. Diagram analysis function;
6. Data can be stored and files can be saved and viewed;
7. The battery real-time display;
8. Double measuring key: front measuring key and tail measuring key can be selected according to the field condition;
9. The dark environment flashlight function;
10. Screen brightness can be adjusted;
11. Language: Chinese and English optional;
12. Automatic sleep: automatic shutdown time can be set;
13. Equipment status evaluation table: intelligently judge the machine grade according to the measurement results;

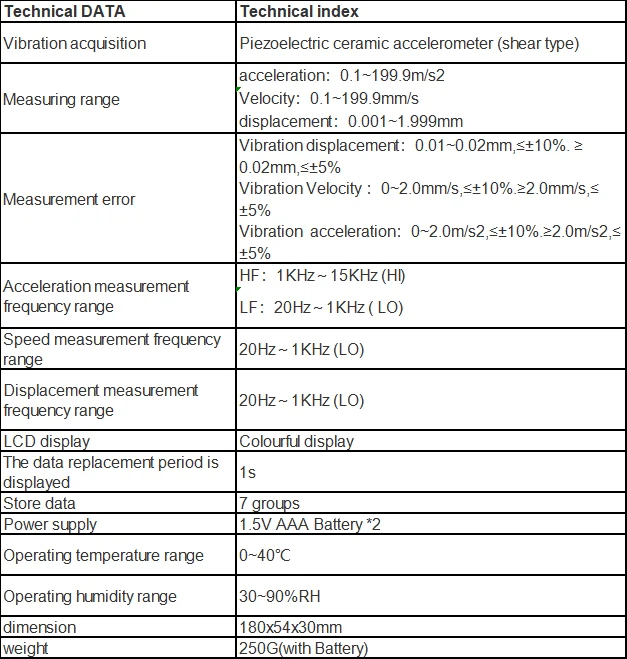

data
